CL DRAWER LOCKS
The CL range of drawer locks commonly used in locking cupboard doors or single drawers are a reliable partner for everyday use. Coming in a square or round back, made of diecast zinc in a chic chrome plate or matte black finish, these cupboard locks are easy to install, are supplied as master keyed for added security and are part of the CL interchangeable barrel system for furniture locks.

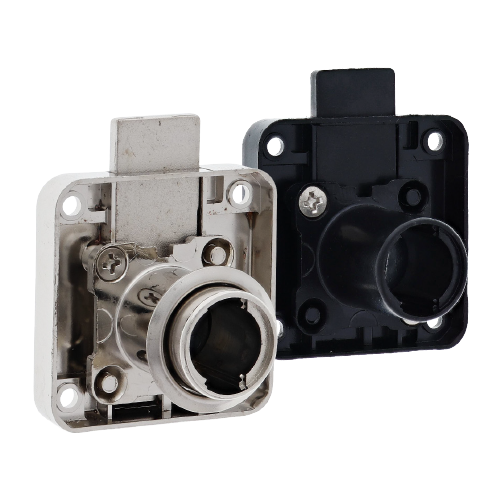

SQUARE BACKED DRAWER LOCKS
- CL Drawer lock range has a square base and is made of diecast zinc.
- This lock range has an interchangeable barrel system.
- The lock can accept our range of CC, CD, GA dimple and CL4 wave design barrels. Barrels need to be ordered separately from the lock bodies.
- Master and removal key available.
- The key is removable in both the locked and unlocked positions. Turn 180 degrees to operate.
- The standard operation is where the square locking bolt shoots upwards at a 12 o’clock locking position. Options include where the locking bolt shoots to the right (A-601-22-01-LH) or shoots to the left (A-601-22-01-RH).
- 18mm cylinder diameter with a 22mm projection is the standard model (A-601-22-01). Options include a 32mm cylinder projection (A-601-32-01). The “32” in the code indicates a 32mm cylinder projection.
- Fixing hole size of 19mm. Suits door thickness of 16mm-20mm for standard model, 24mm-30mm for 32mm cylinder model.
- The set includes the lock body and a bezel.
- Lock specifications are; body 42mm x 42mm, with an 8mm thick body thickness, standard cylinder housing length of 22mm with an 18mm diameter barrel, bolt width is 15.9mm and the bolt projection is 9.5mm.
- Available in a chrome plate or matte black finish.

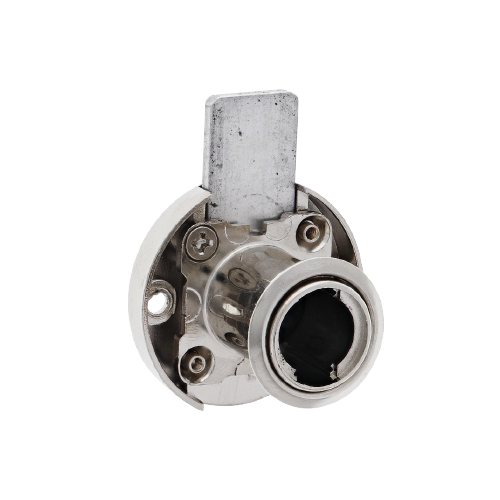

ROUND BACKED DRAWER LOCKS
- CL Drawer lock range has a round base and is made of diecast zinc
- This lock range has an interchangeable barrel system.
- The lock can accept our range of CC, CD, GA dimple and CL4 wave design barrels. Barrels need to be ordered separately from the lock bodies.
- Master and removal key available
- The key is removable in both the locked and unlocked positions. Turn 180 degrees to operate.
- The standard operation is where the square locking bolt shoots upwards at a 12 o’clock locking position. There is another model with an offset bolt for alternative locking solutions. It has all the same features of the standard straight bolt model, the cam has a 7mm offset.
- 18mm cylinder diameter with a 22mm projection is the standard model.
- Fixing hole size of 19mm. Suits door thickness of 16mm-20mm
- The set includes the lock body and a bezel
- Lock specifications are; body 39.5mm diameter, with an 7mm thick body thickness, standard cylinder housing length of 22mm with an 18mm diameter barrel, bolt width is 16mm and the bolt projection is 9.5mm.
- Available in a chrome plate finish.
